Capability Pattern: Elaboration Iteration
This is an example Elaboration Phase iteration. It includes the activities typically performed during a single iteration in the elaboration phase. The goal of the elaboration phase is to baseline the architecture of the system to provide a stable basis for the bulk of the design and implementation effort in the construction phase. The architecture evolves out of a consideration of the most significant requirements (those that have a great impact on the architecture of the system) and an assessment of risk. The stability of the architecture is evaluated through one or more architectural prototypes.
DescriptionWork Breakdown StructureTeam AllocationWork Product Usage
CollapseWorkflow

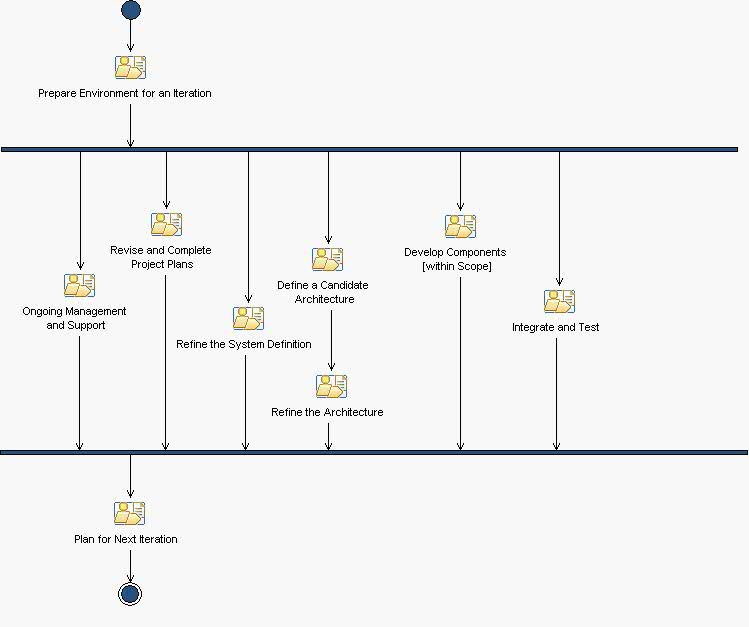

Activity diagram: Elaboration Iteration Prepare Environment for an Iteration Revise and Complete Project Plans Ongoing Management and Support Refine the System Definition Define a Candidate Architecture Refine the Architecture Develop Components [within Scope] Integrate and Test Plan for Next Iteration
CollapseWork Breakdown
Breakdown ElementStepsIndexPredecessorsModel InfoTypePlannedRepeatableMultiple OccurrencesOngoingEvent-DrivenOptionalTeam
Expand
Prepare Environment for an Iteration
 1  ActivityYes
Expand
Revise and Complete Project Plans
 31 ActivityYes
Expand
Ongoing Management and Support
 111 ActivityYes  Yes
Expand
Refine the System Definition
 361 ActivityYes
Expand
Define a Candidate Architecture
 401 ActivityYes
Expand
Refine the Architecture
 4340 ActivityYes
Expand
Develop Components [within Scope]
 511 ActivityYes Yes
Expand
Integrate and Test
 741 ActivityYes  Yes
Expand
Plan for Next Iteration
 1033,11,36,43,51,74 ActivityYes
